Camera Slider PRO Magnetic

Camera Slider PRO Magnetic

Highlights

  • 100% Made in Italy
  • Magnetic Field Technology
  • Trapezoidal Rail Layout
  • 50 kg Load Capacity
  • Billet Anticorodal Made
  • 8 High Precision Steel Ball Bearings
  • Integrated Feet
  • ST-66 Polymer Wheels
  • Ready for Motion Control
  • LIFETIME WARRANTY

Lifetime warranty

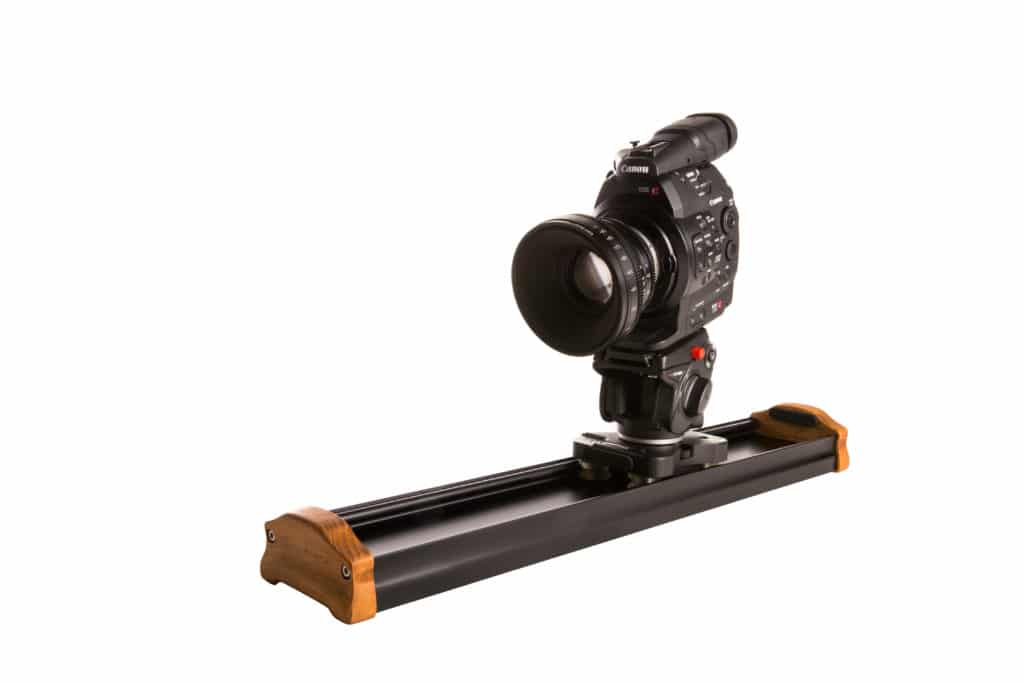

ShooTools Camera Slider Pro Magnetic Field: it’s the state of art of the Professional sliders due to its unique design, its extreme lightness and incredible load capacity of over 110 lb (50 kg). Guaranteed for life.

Magnetic Field

Camera Slider Pro, characterized by its innovative Magnetic Field Technology, revolutionises the way of shooting: a magnetic field is generating between the lateral stoppers and the carriage while running close the end-stop and counteracts at the beginning/end of the track, by slowing down the run of the carriage while reaching the end-stop. Thanks to this system, you’ll never impact against the end-stop and you are going to generate always new original bouncing effects and fabulous lateral or frontal accelerations.

Rail

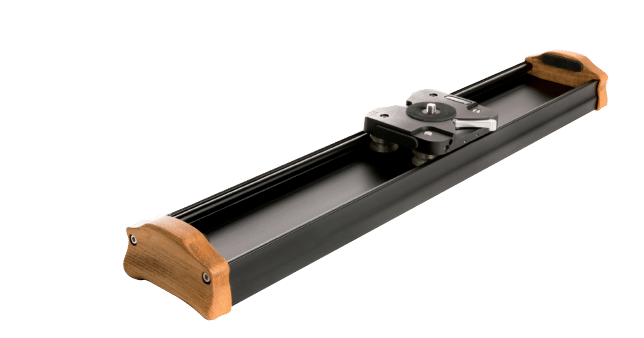

That’s the real ShooTools’ avant-garde gem: the rail has got an absolute exclusive unique layout, designed and extruded by ShooTools. Light and at the same time strong, the ShooTools Slider Pro has a peculiar trapezoidal section designed to have the maximum steadiness possible. Being only 4,85 lb (2.2 kg) heavy, it can support weights over 110 lb (50 kg). The peculiar shape of the rail hosts the carriage, that running inside the rail, sets to zero any eventuality of damaging the wheels.

Wood end-stop laterals

The end-stop made of wood is absolutely pleasing to the touch and offers a unique grip. Characterized by a low specific weight, the wood has got a high mechanic resistance and offers at the same time an exquisite design.

Carriage

Iconic stability: the carriage is milled from a piece of extruded aluminium, realized by high working mechanic precision, within a hundredth of a millimetre, that assure high standard of resistance and load balance. The sophisticated friction system and brake on-board made the carriage a real mechanical masterpiece, unrivalled.

Special Wheels

Special wheels realized with an innovative ST-66 technopolymer designed by ShooTools in order to guarantee max smoothness and extreme carriage fluidity. The main characteristics of this material are that it is resistant to high temperatures, +266 °F (130 °C) as to the low ones, till -58 °F (-50 °C), and it guarantees high payload without deformations. Each wheel is characterized by a double steel ball bearing that equipped the exclusive ShooTools’ wheel assembly, for a max fluidity of movement and performance.

Friction and brake system

A double friction system allows the adjustment of the feeling in real time in every moment, by acting both on the wheel group and through the comfy knob. While, quick and easy to use, the new ergonomic system of brake generates an extreme safe blockage, suitable for any kind of set-up, even for the heaviest one.

Integrated Feet

4 adjustable feet complete ShooTools Camera Slider PRO: integrated into the structure itself of the slider, they are ready to use and can be easily and quickly moved along the full slider length.

Fixing Bases

Camera Slider Pro has got two special bases for threaded holes of 1/4 “ and 3/8”, easily adjustable along the full rail and suitable for tripods. On the carriage is possible to moun any kind of photo or video head with 3/8” thread, a standard in the field.

Quality of Made in Italy

Each component undergoes two distinct types of treatment: the first one, by shot peening through ceramic spheres, increases the hardness and the resistance to fatigue of the object and, in addition, provides a pleasant hi-grip finish. The second treatment, anodizing at 30 microns, protects the device from any external agent. These technical solutions allow the use of the ShooTools Camera Slider Pro everywhere without compromises. Slider Pro has a lifetime warranty.

Technical data

Rails Trapezoidal Rail Layout

Payload 50 kg

Wheels ST-66 Special Polymer Wheels

Ball Bearings 8 High Precision Ball Bearings

Feet Integrated tabletop feet

Friction System ShooTools Double Friction System

Magnetic Field Start and Stop Assistant

Screw Thread 3/8”-16

Tripod Mounting Threads 2 x 1/4”-20, 2 x 3/8”-16”

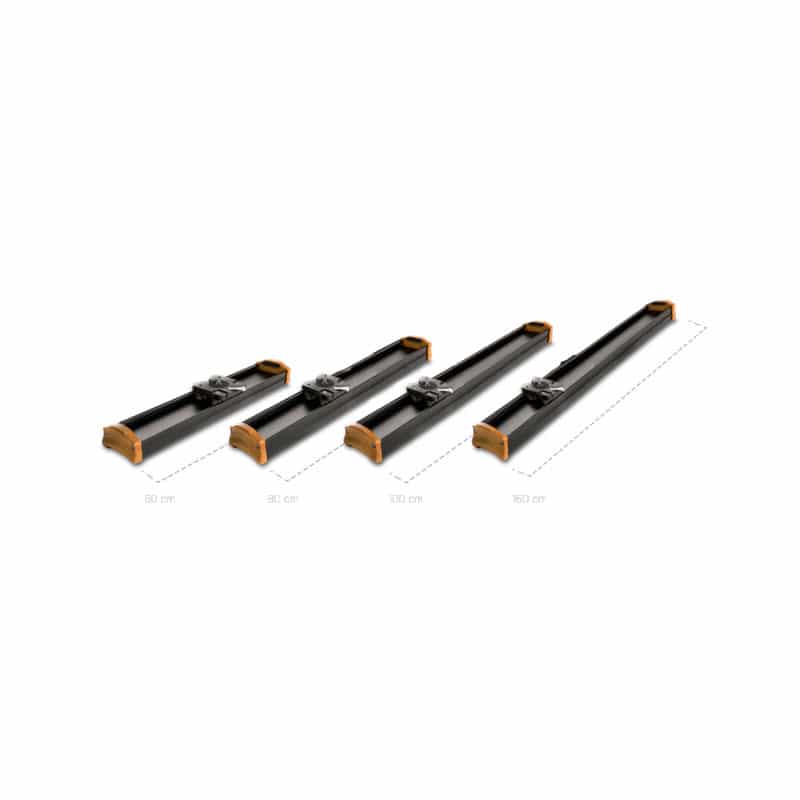

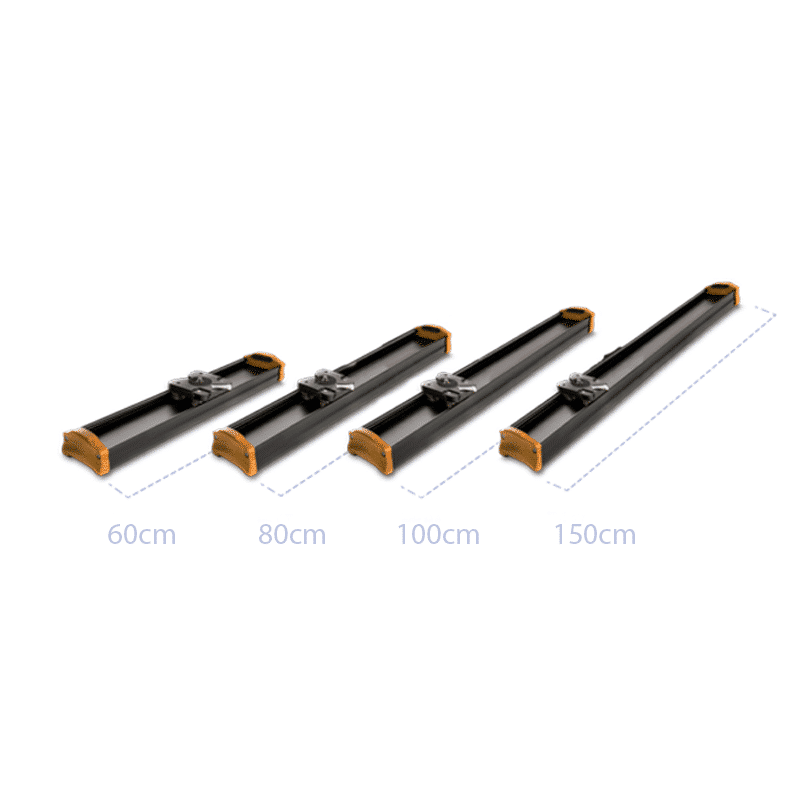

Weight 60 cm / 2,2 kg

Weight 80 cm / 2,5 kg

Weight 100 cm / 2,8 kg

Weight 150 cm / 3,5 kg

Materials Anodized aluminium, steel ball bearing, PSU polymer wheels

Treatments Shot peening through ceramic spheres. Organic Anodization at 30 micron.

What’s in the box?

  • Camera Slider PRO
  • 4 Integrated feet
  • 2 Plates
  • Set-up Keys
  • Instruction Manual
  • Non-woven fabric wrapper

Download datasheet

3I00060-00_Brochure_Eng_Slider_Pro_Magnetic Download (380Kb)
