Universal Tilt Hi Hat

Universal Tilt Hi Hat

HIGHLIGHTS

  • 100% Made in Italy
    Unique 180° Rotation
    Universal for 75mm 100mm heads
    3/8” Knob Included
    M10 Knob Included
    Billet Anticorodal Componts
    Professional Tool
    Double System of Blockage
    Lateral 3/8” – 1/4” holes

LIFETIME WARRANTY

BORN UNIVERSAL

Tilt Hi Hat is designed to suit every video head of 75mm and 100mm, simply installing the included ring adapter, tool-less. ShooTools aims to offer always smart solutions and for this reason, Tilt Hi Hat includes 2 Locking Handles of 3/8” and M10 for a quick video head set up, valid for any branded video head available in the market (Cartoni, Manfrotto, Miller, Sachtler, etc.).

180° ROTATION CAPACITY

The easiest and most practical “upside down” shootings can be realized so easily! No effort is required to obtain unique points of view like table tops or vertical tracking shots. Everything works really smoothly at the desired angle.

SAFETY AND STEADINESS

The two valuable locking handles of 3/8” & M10 facilitate the head fixing in any desired position, while a dual blockage system guarantees maximum safety and steadiness.

BORN UNIVERSAL

Tilt Hi Hat is designed to suit every video head of 75mm and 100mm, simply installing the included ring adapter, tool-less. ShooTools aims to offer always smart solutions and for this reason, Tilt Hi Hat includes 2 Locking Handles of 3/8” and M10 for a quick video head set up, valid for any branded video head available in the market (Cartoni, Manfrotto, Miller, Sachtler, etc.).

LIFETIME DEVICE

Completely Drilled in Italy from high-quality 6066 Aluminum, Shootools Tilt Hi Hat is finished with a double treatment of shot peening, to increase hardness, and anodization at 30 microns, to increase the tools protection against usage, time and weather conditions.

Technical data

Rotation up to 184°

Height 61,4″ (156 mm)

Width 49,6″ (126 mm)

Depth 33,4″ (85 mm)

Weight 2,42 lb (1,2 kg)

Load Capacity 44 lb (20 kg)

Ring Adapter Included 75-100 ø

Locking Handle Included 3/8″ and M10

Base Handle 3/8″ 3/8″-16

Holes 6 x 1/4”-20/2 x 3/8”-16

Materials Anodized aluminium CNC machined

Treatments Shot peening through ceramic spheres, Organic Anodization at 30 micron

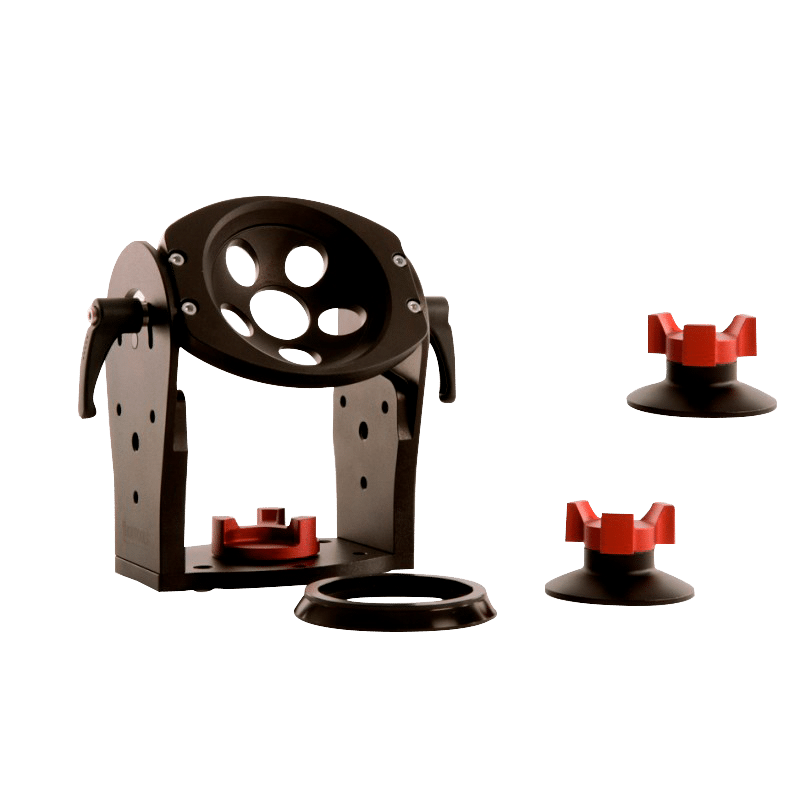

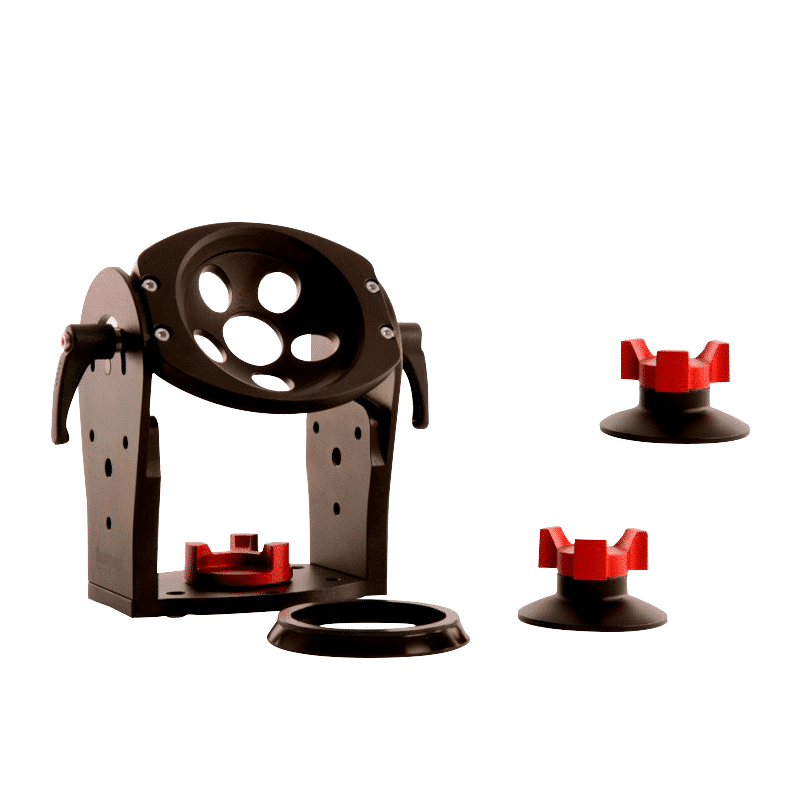

IN THE BOX

  • TILT HI HAT
  • LOCKING HANDLE 3/8″
  • LOCKING HANDLE M10
  • ADAPTER RING 100mm >> 75mm

Download datasheet

3I00053-00_Brochure_Eng_Universal_Tilt_Hi_Hat Download (299Kb)
